SINCE 1975

Providing screening and shredding devices for wastewater treatment plants and pumping stations

With over 40 years of expertise in manufacturing custom installations, retrofits and modifications to suit are key elements G.E.T. Industries works with on a daily basis. Engineers, contractors, end users and representatives are all dealt with at a personal level with Grind Hog comminutors being designed in every detail to accommodate the application at hand.

Find Out More Get a Quote

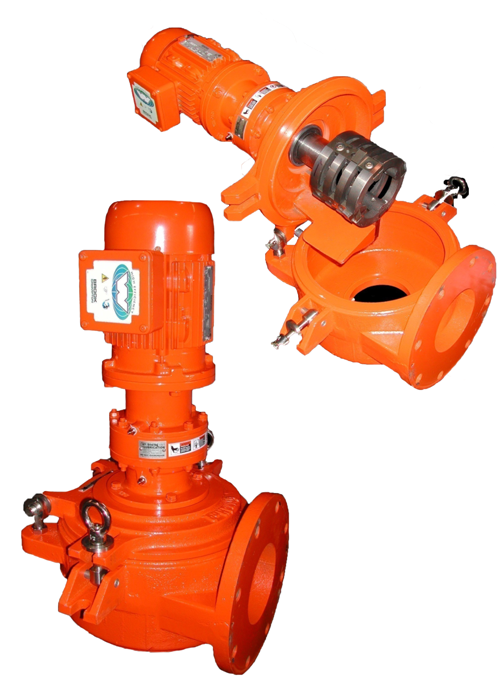

FLANGE MOUNTED



image of the flange monted Grind Hog™ Comminutor

MODEL 5
Flow Rate: 130 gpm (US) 8.2 l/s
Inlet Flange: 6"

MODEL 7-6
Flow Rate: 315 gpm (US) 19.9 l/s
Inlet Flange: 6"
MODEL 7-8
Flow Rate: 315 gpm (US) 19.9 l/s
Inlet Flange: 8"
MODEL 10
Flow Rate: 850 gpm (US) 53.6 l/s
Inlet Flange: 8"

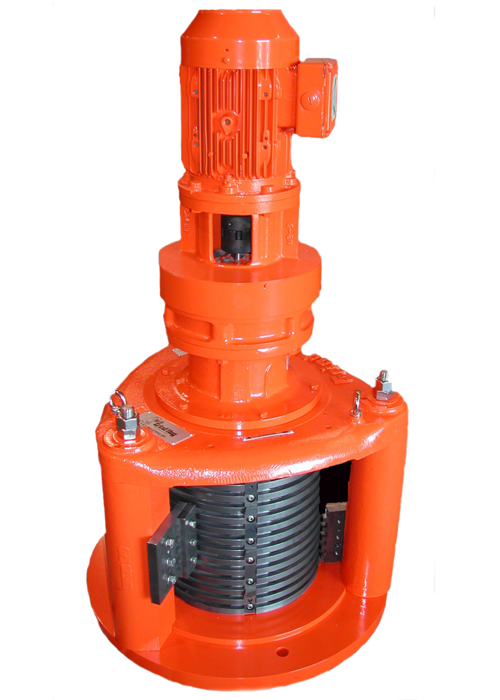

OPEN CHANNEL

VERTICAL DISCHARGE

image of the flange monted Grind Hog™ Comminutor
MODEL 10L
Flow Rate: 1.2 MGD (US) 4500 m3/day
MODEL 16A
Flow Rate: 3.5 MGD (US) 13,200 m3/day
MODEL 16B
Flow Rate: 4.5 mgd 17,000 m3/day
MODEL 24A
Flow Rate: 10 mgd 37,800 m3/day
MODEL 26A
Flow Rate: 20 mgd 75,700 m3/day

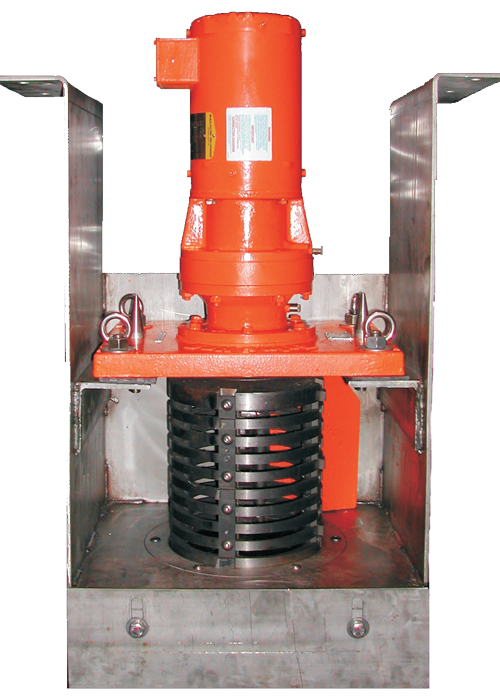

OPEN CHANNEL

HORIZONTAL DISCHARGE

image of the flange monted Grind Hog™ Comminutor
MODEL 10 T/S
Flow Rate: 1.2 MGD (US) 4500 m3/day
MODEL 16A T/S
Flow Rate: 3.5 mgd 13,200 m3/day
MODEL 16B T/S (Request Info)
Flow Rate: 4.5 mgd 17,000 m3/day *
MODEL 24A T/S
Flow Rate: 10 mgd 37,800 m3/day
* Contact Factory - Future Links to Follow

Need To Retrofit An Existing Comminutor?

Various retrofit Grind Hog™ comminutors are available replacing Worthington, Jones & Attwood, Chicago Pump, Smith & Loveless, Franklin Miller, Ecodyne, Clow Aer-O-Flo, Infilco Degremont, Hydro-Aerobics, Pollution Control, JWC among others.

Custom retrofits options not listed are also available with various models offering a wide selection of flow rates to meet a variety of treatment applications.

Typical Mounting Arrangements

Rugged, reliable and ease of maintenance are features that ensure years of economical service in wastewater treatment facilities and pumping stations.

Grind Hog™ Comminutors with cutters of high quality tool steel combined with reversible cutting bars ensure extended periods of trouble free operation.

See Our Wide Range Of Retrofits
